Machinery

Spread on 15.000 square meters of top quality equipped production halls with console and bridge cranes built for manufacturing products weighing up to 100 tons.

We are using state of the art machines and devices for shearing, cutting and processing sheet metal, and also numerically controlled machines used for the final procedure in mechanical handling.

On mobiles phones/tablets simply move left and right when looking at the table.

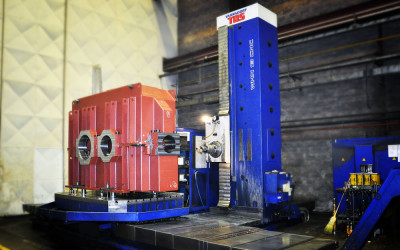

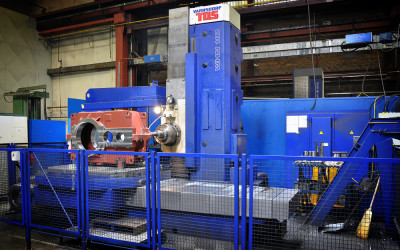

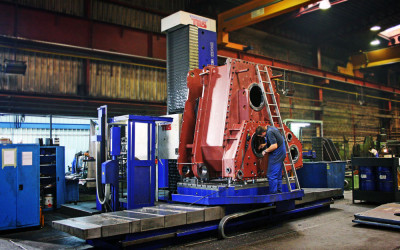

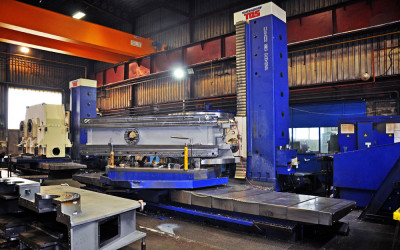

Horizontal/Vertical boring mills

CNC TOS1 TOS2 TOS3 TOS4 TOS5 TOS6 TOS7 TOS8 TOS9 TOS10 TOS11 TOS12 Škoda
Table 1800 x 2200 1800 x 2000 1800 x 2500 1800 x 2500 1400 x 1600 1800 x 2500 1800 x 2500 1400 x 1600 1800 x 2500 2000 x 2500 1400 x 1600 2000 x 2500 1800 x 2500
x axis 3500 3500 4000 4000 2000 5000 5000 2500 4000 11000 2500 11000 8000
y axis 2000 2000 3000 3000 1600 3000 3000 1600 3000 4500 1600 4500 3000
z axis 1250 1250 1600 1600 1250 1600 1600 1250 1600 1200 1250 1200 1600
Max load (kg) 12000 12000 20000 20000 8000 25000 25000 8000 25000 100000 8000 100000 65000
Spindle diameter DIA 130 / ISO 50 DIA 130 / ISO 50 DIA 130 / ISO 50 DIA 130 / ISO 50 DIA 125 DIA 130 / ISO 50 DIA 130 / ISO 50 DIA 125 DIA 130 / ISO 50 DIA 130 / ISO 50 DIA 130 / ISO 50 DIA 130 / ISO 50 DIA 160 / ISO 50

Lathes

Name/type CNC Gildemeister Potisje PA 50 Prvomajska Prvomajska Karusel
Max diameter 400 1000 600 425 2500
Max lenght 1000 3000 3000 1500
Max weight 2500 5000 5000 630 1000

Milling Machines

Name/type Knut ALG 100
Table 2100 x 2500 640 x 19
x, y, z 1500, 670, 670 310, 340
Max weight 2000 100
Spindle ISO 50 ISO 40

Material cutting and handling

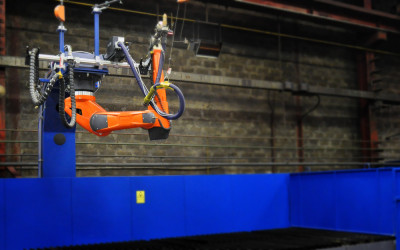

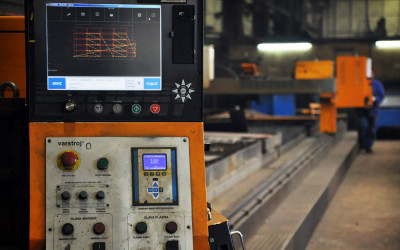

Name/type CNC plasma CNC cutting Robot (Cloos)
Description Cutting up to 50 mm Cutting up to  350 mm Table Size 2500 x 10000 mm
